MAAG • Hybrid Technology Hybrid Technology • MAAG

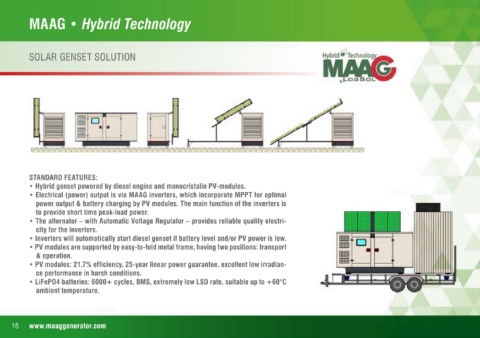

SOLAR GENSET SOLUTION SOLAR GENSET SOLUTION

• The fuel tank incorporated into the base frame of the genset shall sto-
re enough fuel for 24 hours of operation at 90% load of diesel engine.
• UPS function.

OPTIONS:
• Three-phase or single phase versions.
• Output breaker available as 3P or 4P, with or without overload protec-
tion (MX, shunt relay).
• “Silent” & “Super silent” canopy & exhaust silencer options.
STANDARD FEATURES: • Larger capacity fuel tank.
• Hybrid genset powered by diesel engine and monocristalin PV-modules. • Larger PV module support frame to accommodate 24pcs of PV modules.
• Electrical (power) output is via MAAG inverters, which incorporate MPPT for optimal • Separate PV module kit is available – to be connected directly to inverters - to increase solar ratio, reducing diesel
power output & battery charging by PV modules. The main function of the inverters is engine running hours & fuel consumption.
to provide short time peak-load power.
• The alternator – with Automatic Voltage Regulator – provides reliable quality electri- MEMBER OF THE MAAG MODULAR MULTI-PURPOSE SYSTEM CONCEPT
city for the inverters. The concept is based on uniform hybrid powered set extended/attached with different auxiliary units to be used for indivi-
• Inverters will automatically start diesel genset if battery level and/or PV power is low. dual purposes. Such auxiliary units might be
• PV modules are supported by easy-to-fold metal frame, having two positions: transport • water- or sewage pumps
& operation. • air fans or hot air blowers
• PV modules: 21.7% efficiency, 25-year linear power guarantee, excellent low irradian- • grain or fruit dryers
ce performance in harsh conditions. • irrigators, coolers or fridges
• LiFePO4 batteries: 6000+ cycles, BMS, extremely low LSD rate, suitable up to +60°C • drone charger hubs
ambient temperature. • aerial spraying equipment
